Overview
An off-grid solar system designed for special purposes and applications in areas where the power supply is unstable.
Structure
01Solar Cells
02Solar Cell Mount (Structure)
– Flat slab type: The structural type applied when installed on vacant lots or on slabs on building rooftops
– Sloped Roof Type: A structural type applied when installing solar panels on the roof of a building with a south-facing slope.
– Self-Weight Type: A structural type applied when the building’s roof slope runs east-west or north-south.
– Pole type: Pole-attached type. Structural forms installed on pillars or streetlights
03Pure Sine Inverter
04Deep Cycle Battery: SLD maintenance-free, leak-free
05Charging Controller (MPPT, PWM Method)
06Cables and Miscellaneous Materials
07Outer Box
Application Areas
○ CCTV
○ Relay
○ County
○ Vessels
○ Vehicles such as camper vans
○ Polar regions

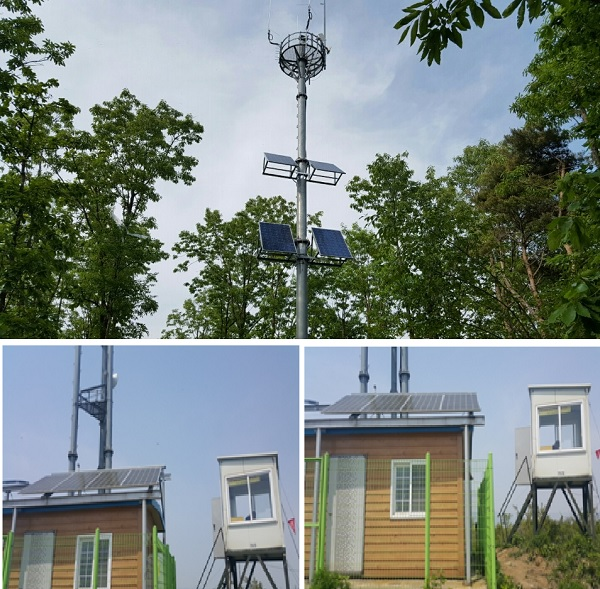

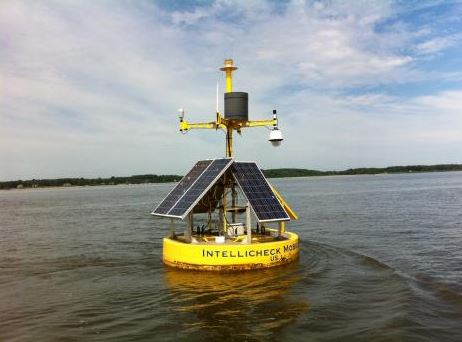

Installation Example
* Since the design may vary depending on the surrounding environment, please be sure to consult or inquire before proceeding.
